Low Rise Multi-Residential Intertenancy Wall System

PowerPanel50 Intertenancy / Party Wall

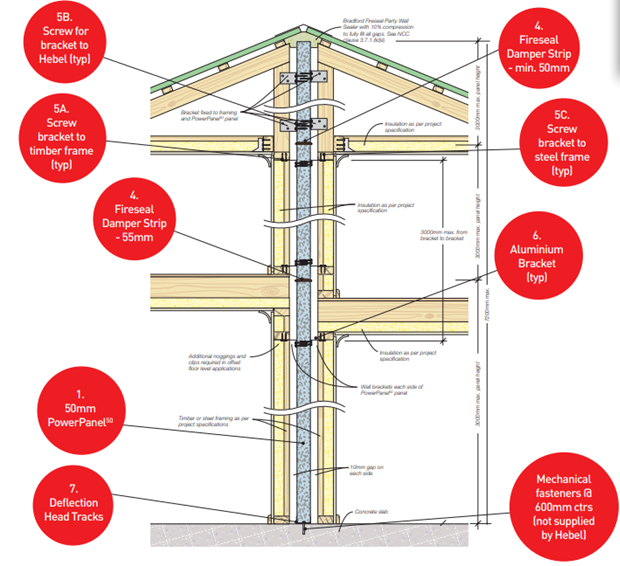

The PowerPanel50 Intertenancy Wall System consists of 50mm thick steel reinforced AAC panels installed vertically to timber or steel frame. Uses aluminium wall brackets for discontinuous construction and Hebel deflection head track for base connection.

  • Fire rating: Up to 90/90/90.

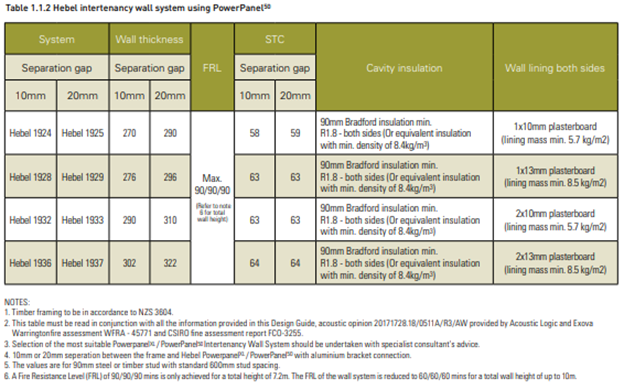

  • Acoustic: Achieves Rw + Ctr 50 dependent on wall system configuration.

Note: Refer to Hebel website or contact Hebel Technical services for further details on performance of wall system.

PowerPanel50 Standard Panel Sizes


50mm thick x 600mm wide x 2200mm, 2400mm, 2550mm, 2700mm, and 3000mm long.

PowerPanel50 Intertenancy / Party Walls - Low Rise Multi Residential


  • Fast and easy system to install
  • Easy to fire-rate with no need for fire-rated plasterboard between floor levels at joists and in roof space.
  • Narrow system wall width - starting at 230mm - with 70mm separation between stud frames across all systems.
  • Simple system componentry maximizes construction efficiency.
  • Panels up to 3 metres in height installed vertically.
  • Easy to cut PowerPanel50 panels onsite.
  • PowerPanel50 wall construction not affected by wet or damp conditions.
  • Minimal onsite waste.
  • Environmentally responsible building material.
